COMMUNICATION SYSTEM/PBX A-MUX 32P FXS,FXO,E&M,LB,IDTMF,1E1,DATA

Connecting system with full availability with different types of analog signalling and PRI ISDN DSS1 signalling- all PbX basic functions and services

• 1 E1 G704 (120 Ohm, RJ 45) ISDN DSS1signalling
• 1 Ethernet 10/100 BT auto MDIX option
• 1 RS232 (V.24) RJ 45 connector
• 8 positions for analog voice modules - RJ 45 connectors

modules:

• FXS (analog subscriber) 4-fold
• FXO (analog trunk) 2-fold
• E&M signalling (pulse / permanent) - several types - 2-fold
• IDTMF signalling/off-premise extension OPX (company signalling) 2-fold
• LB telephone 2 - fold
• P signalling (3 wire DID) 2-fold
• 1x data module: 2 x X.21 / 2 x RS 485

Other informations:

• crossconnect of data interfaces n x 64 or 10/100 BT to E1 timeslots (DACCS)
• possibility to connect LAN over specified E1 timeslots
• possibility to connect OPX Station or different analog converters (IDTMF sig.)
• many options for routing, analysis, adjustment and restriction of dial (suitable for private networks)
• possibility to connect also over Ethernet 10/100 BT
• flexible numbering
• caller ID generation and transmission (also on analog lines)
• number of other different functions and services
• diagnostics of all interfaces
• call detailed record
• SNMP protocol

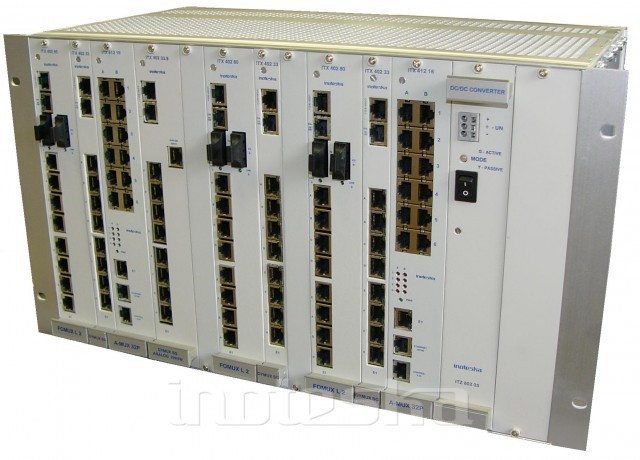

• desktop (1U) or rack (8 cards) version - crossconnect possibility through Dymux (8xE1 multiplexer)
• local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
• remote configuration and control via TCP/IP
• possibilty to save the parameter settings (configuration) to PC
• possibility to change firmware - upgrade (remotely as well)
• power supply -48 V DC

product code:

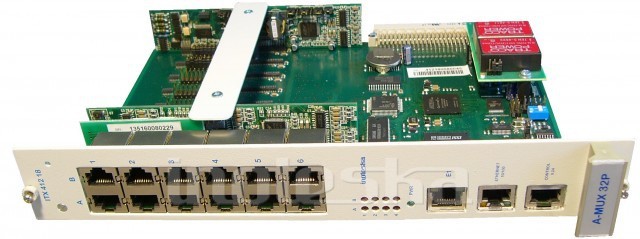

ITX 482 90 A-MUX 32P

ITX 482 90.1 A-MUX 32P, 2xX.21

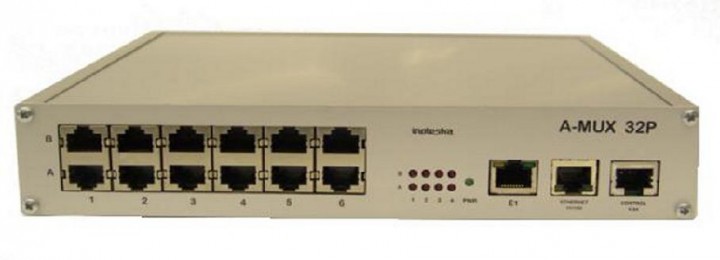

ITX 495 90 A-MUX 32P 1U
