Multiplexer PRI
- transmission of 2 E1 interfaces over 1 Ethernet - TCP/IP protocol
- 1x Ethernet 10/100 BT auto MDIX
- 2xE1 G704 (120 Ohm, RJ 45 resp. 1x 75 Ohm BNC connector)
- 1xRS232 (V24) RJ 45
- unframed 2xE1 or 1xE1
- framed 2xE1,1xE1 or Nx64 TS in E1
- transmission in local network RAW ETH
- transmission over IP network
- identification of devices according to their ID or IP address
- jitter buffer – optional setting to 2, 5, 10 ms.
- setting of TOS/DiffServ bits
- VLAN and 802.1p support
- clock recovery /synchronization E1 over Ethernet network / IP network
- one device is synchronized from E1 side and another from Ethernet
- for secure device operation – it is necessary to set QOS in the network, min. delay, min. error rate and min. packets jitter
product code:

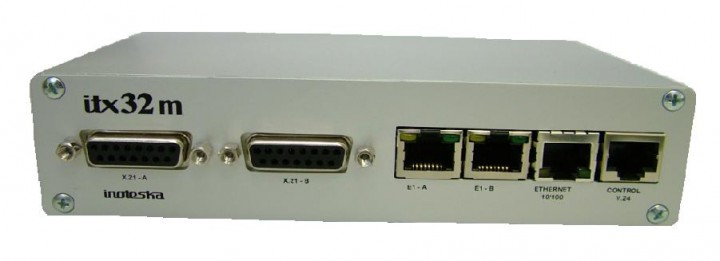

Realized in multiplexer ITX 32M
ITX 471 31.4 Multiplexer E1, ETH -( RJ)
ITX 471 31.5 Multiplexer E1, X.21, ETH - (RJ, BNC)
ITX 471 31.7 Multiplexer D E1, D X.21, ETH - (RJ)
ITX 471 32.5 Multiplexer E1, UDI, ETH - (RJ, BNC)
ITX 471 32.7 Multiplexer D E1, D UDI, ETH - (RJ)
ITX 471 33.7 Multiplexer D E1, 2xRS485, ETH - (RJ)
systems for voice data communication
