MUX E3, ETHERNET/FIBRE OPTIC

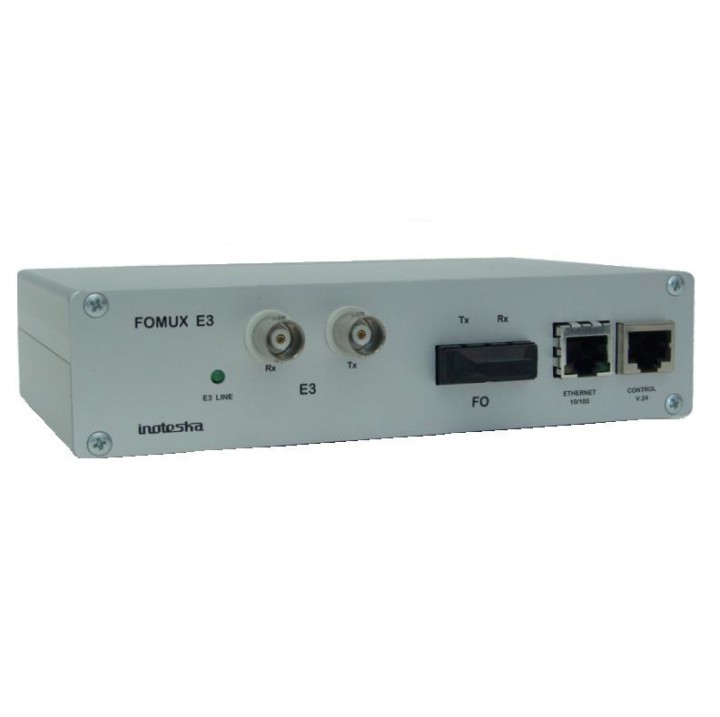

Multiplexer E3

  •  merges E3 and Ethernet 10/100 BT to FO optical interface 155 Mb (STM1)

optical interface:

  • SC duplex connector
  • SM / MM (1300nm, 1500nm) (SM - single mode MM - multi mode)
  • distance SM: 15, 40, 80 km (for variant SM 15km - one optical fibre is sufficient  - different wave length)

Other informations:

  • E3 BNC connector 75 Ohm
  • 1x Ethernet 10/100 BT FD - RJ 45 connector
  • 1x RS232 (V.24) - RJ 45 connector
  • SNMP protocol
  • desktop version
  • local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
  • remote configuration and control via TCP/IP, HTTP
  • possibility to change firmware - upgrade (remotely as well)

product code:

ITX 471 11 FOMUX E3, ETH/OPTIC
