FOMUX L 8/16E1 OVER FIBRE (SFP), 1ETHERNET 10/100 BT

Multiplexer PRI, Ethernet, optic

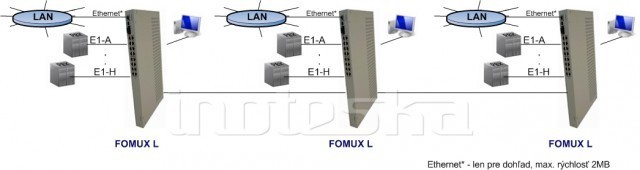

• fibre backhaul, point-to-point backhaul
• merges 8 up to 16 E1and Ethernet 10/100 BT to FO optical interface 155 Mb (STM1)

optical interface:

• SC duplex connector
• SM / MM (1300nm, 1500nm) (SM - single mode MM - multi mode)
• distance SM: 15, 40, 80 km (for variant SM 15km - one optical fibre is sufficient  - different wave length)
• or optional SFP fiber optic modules for Fomux L with SFP (CWDM)

Other informations:

• 16 E1 G703 120 Ohm - RJ 45 connector
• 1 Ethernet 10/100 BT FD - RJ 45 connector
• 1 RS232 (V.24) - RJ 45 connector
• desktop version 1U or rack version 6U
• diagnostics of all interfaces
• SNMP protocol
• desktop (1U) or rack (8 cards) version
• local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
• remote configuration and control via TCP/IP, HTTP
• possibility to change firmware - upgrade (remotely as well)

product code:

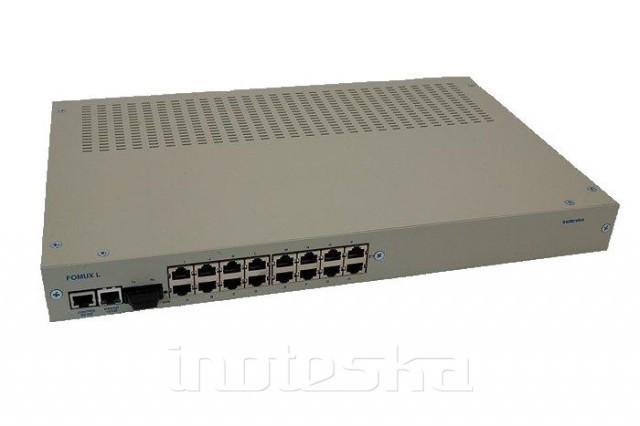

Desktop 1U
ITX 495 03 FOMUX L, 8 x E1, 1 x fibre optic, 1 x Ethernet 10/100
ITX 495 04 FOMUX L,16 x E1, 1 x fibre optic, 1 x Ethernet 10/100
  available variants: ITX 495 03/4.abcdef
                                    a - power supply 48V, 230V
                                    b - optic mode SM, MM, SFP*
                                          * for SFP only power supply must be specified
                                    c - wave length 1300, 1550 nm
                                    d - distance 2, 15, 40, 80 km
                                    e - type of connector 1=RJ45, 2=BNC
                                    f - optic communication X=over 2 optic fibers, A=type A over 1 optic fiber,
                                        B=type B over 1 optic fiber

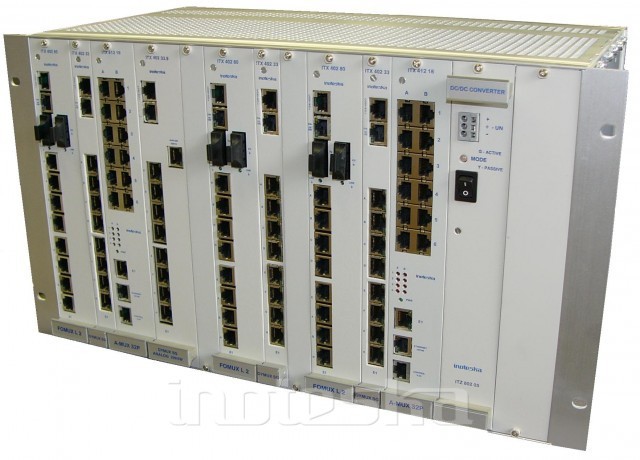

Rack 6U
ITX 402 36 FOMUX L  SM  8 x E1, 1 x fibre optic, 1 x Ethernet 10/100
ITX 402 37 FOMUX L  SM 16x E1, 1 x fibre optic, 1 x Ethernet 10/100
  available variants: ITX 402 36/7.abc
                                    a - optic mode SM
                                    b - distance 15, 40, 80 km
                                    c - optic communication X=over 2 optic fibers, A=type A over 1 optic fiber,
                                         B=type B over 1 optic fiber
ITX 402 46 FOMUX L  MM  8 x E1, 1 x fibre optic, 1 x Ethernet 10/100
ITX 402 47 FOMUX L  MM 16 x E1, 1 x fibre optic, 1 x Ethernet 10/100
  available variants: ITX 402 46/7.ab
                                    a - optic mode SM
                                    b - distance 2, 15, 40, 80 km

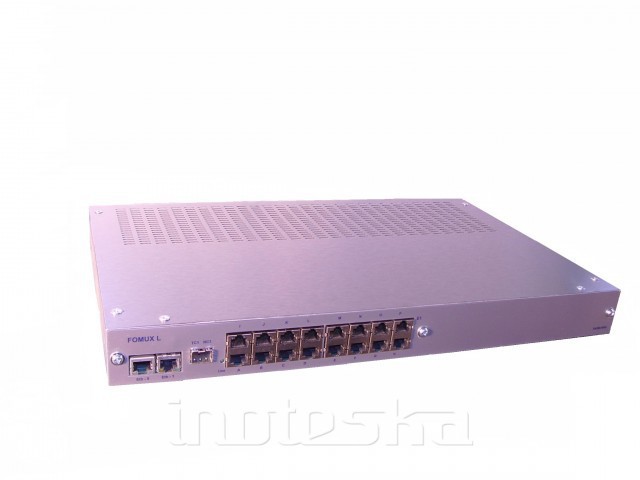

ITX 402 81 FOMUX L  8 x E1, 1 x SFP, 1 x Ethernet 10/100
ITX 402 82 FOMUX L  16 x E1, 1 x SFP, 1 x Ethernet 10/100
