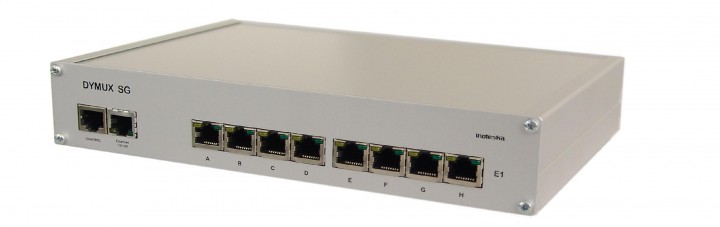

ACCESS MULTIPLEXER/CHANNEL BANK DYMUX SG 4/8E1 1ETHERNET 10/100 BT

- access PRI multiplexer, channel bank
- call concentration, call routing, static crossconnect of any E1 timeslots

- 4/8 E1 G.704 (120 Ohm, RJ 45) ISDN DSS1 signalling
- 1 Ethernet 10/100 BT auto MDIX option
- 1 RS232 (V.24) RJ 45

- SNMP protocol

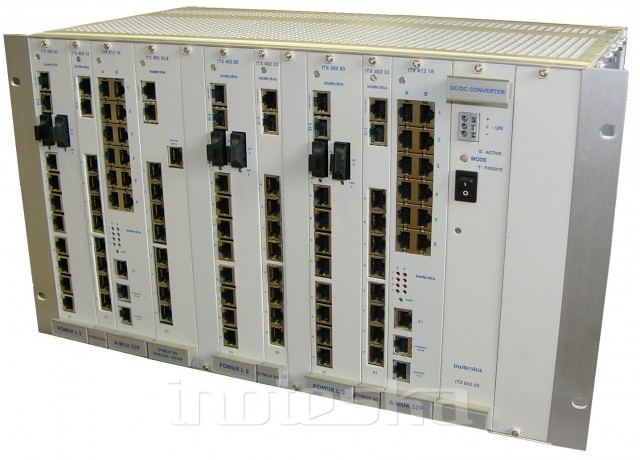

- desktop (1U) or rack (16 cards, telecom connector for E1) version
- dynamic (statistic) concentration of voice calls
- calls routing based on specified criteria
- analysis and adjustment of called and calling party number
- parameters change of called and calling party number
- charging – generation of charging pulses
- dial authorization analysis
- call detailed record
- E1-A..H interfaces diagnostics
- universal configuration SW (Uniman) for PC
- local configuration from PC via V.24(RS232) interface
- remote configuration and control via TCP/IP
- possibility to save the set parameters (configuration) to PC
- possibility to change firmware - upgrade

- SW variants:
• stamux - static timeslots cross-connection (DACCS)
• dymux - stamux + dynamic concentration of voice calls, call routing (DSS1 sig.)

- DYMUX SG is possible (by change of  firmware) to use as multifunctional device
- other  functions(*):
* - inverse multiplexer 8 x E1
* - E1 over Ethernet
* - VLAN router

- product code:
ITX 482 78 DYMUX SG 4/8xE1, 1xETH
