FOMUX L2 8E1/ 2FO, 10/100BT

• multiplexer PRI, Ethernet, optic
• fibre backhaul, point-to-point backhaul, point-to-multi point
• merges 8xE1and Ethernet 10/100 BT to 2xoptical interface 155 Mb (STM1)

optical interface:

• SC duplex connector
• SM / MM (1300nm, 1500nm) (SM - single mode MM - multi mode)
• distance SM: 15, 40, 80 km (for variant SM 15km - one optical fibre is sufficient  - different wave length)

• 16x E1 G703 120 Ohm - RJ 45 connector
• 1x Ethernet 10/100 BT FD - RJ 45 connector, max. Baud rate 2 Mbps
• 1x RS232 (V.24) - RJ 45 connector

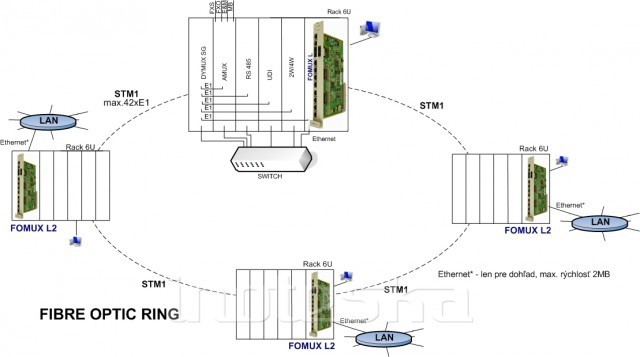

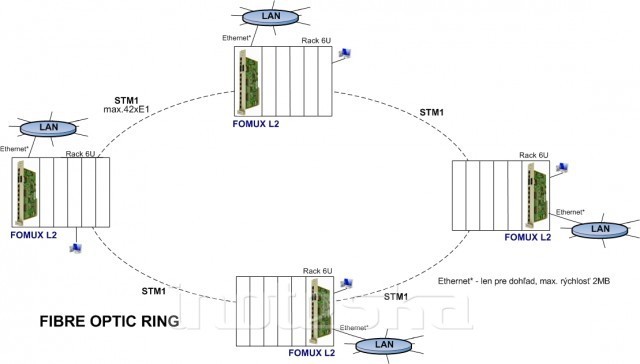

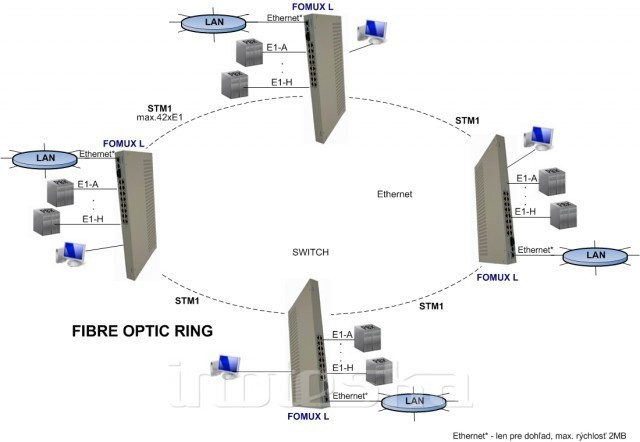

• posiibility to connect devices to a line or to a ring (circuit) -automatic switching between interfaces in case of line or device drop-out
• max. 8xE1 on one card or option to inter-connect the several cards via optic fibre
• max. 42xE1 when devices are connected to the ring

• diagnostics of all interfaces
• SNMP protocol
• desktop (1U) or rack (8 cards) version
• local configuration from PC via interface V.24 (RS232) or 10/100 BT UDP
• configuration SW for network configuration
• remote configuration and control via TCP/IP, HTTP
• possibility to change firmware - upgrade (remotely as well)

product code:

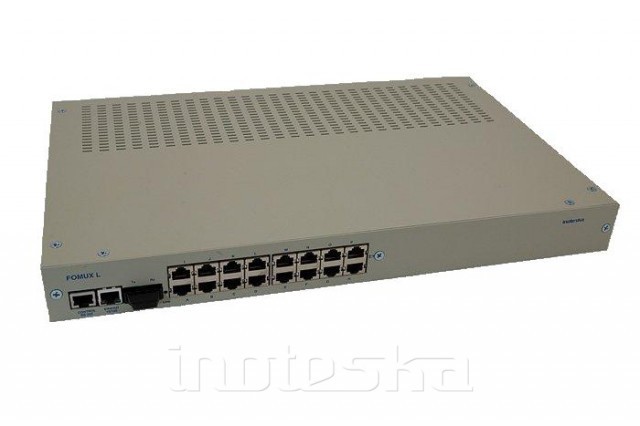

Desktop 1U

ITX 495 15 FOMUX L2, 8 x E1, 2 x fibre optic, 1 x Ethernet 10/100
ITX 495 16 FOMUX L2, 16 x E1, 2 x fibre optic, 1 x Ethernet 10/100
available variants: ITX 495 15/6.abcdef

1. power supply 48V, 230V
2. optic mode SM, MM
3. wave length 1300, 1550 nm
4. distance 2, 15, 40, 80 km
5. type of connector 1=RJ45, 2=BNC
6. optic communication X=over 2 optic fibers, A=type A over 1 optic fiber, B=type B over 1 optic fiber

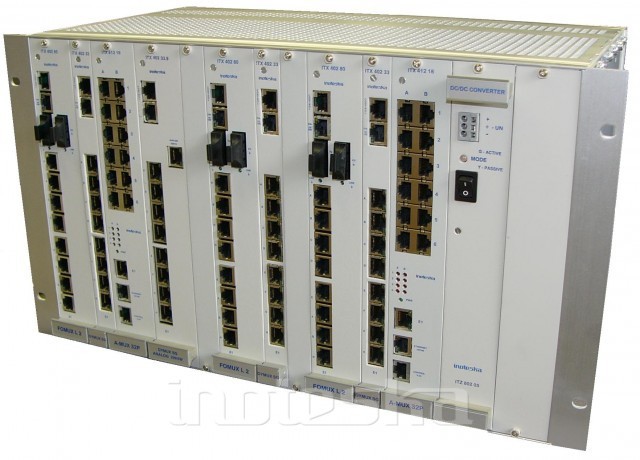

Rack 6U

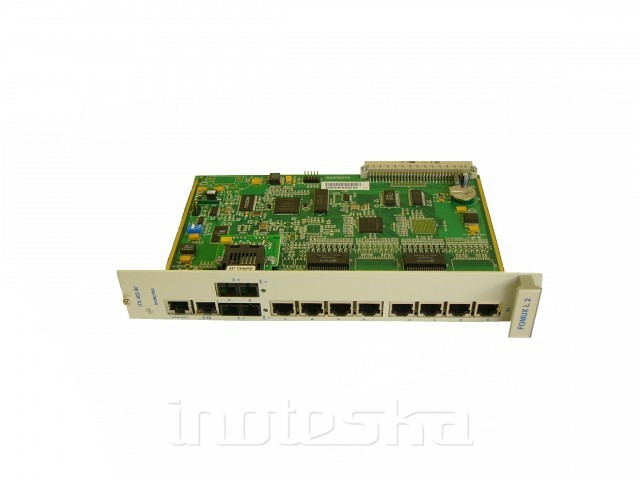

ITX 402 80 FOMUX L2  SM  8 x E1, 2 x fibre optic, 1 x Ethernet 10/100
available variants: ITX 402 80.abc

1. optic mode SM
2. distance 15, 40, 80 km
3. optic communication X=over 2 optic fibers, A=type A over 1 optic fiber, B=type B over 1 optic fiber
